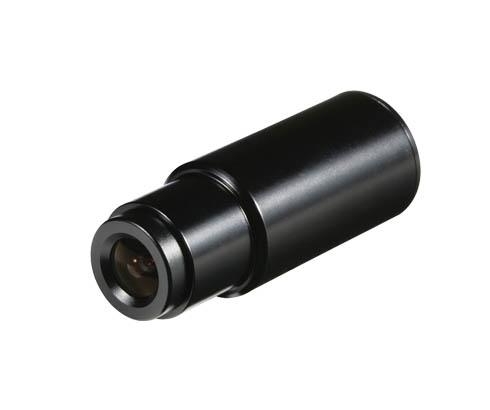

VCL-4C2DM
VCL-4C2DM
1/3” Panasonic 2.2M Progressive Scan
SMPTE274M
(1080p60/50, 1080p30/25, 720p60/50, 720p30/25)
3G-SDI (270M,1.485G, 2.97G)
EX-SDI (Long Reach Up to 300m [RG59])
0.1 lux @ F1.4, 30IRE, 0.0Lux@IRED ON(B/W)
HD-SDI to EX-SDI Selectable by OSD
WDR(Double Scan), 3D-DNR, HLM, Sens-up
DIS, Quick Zoom
Waterproof(IP67): VCL-F4C2DM-WX-OSD
Small size of Ø19
Option : OSD Cable, Lens(Waterproof, Pinhole, Fixed Model)
- 1/3” Panasonic 2.2M Progressive Scan CMOS
- SMPTE274M(1080@30p/25p, 720@60p/50p , 720p30/25) 3G-SDI (270M , 1.485G , 2.97G) EX-SDI (Long Reach UP to300M (RG59)
- HD-SDI to EX-SDI Selectable by OSD
- f=3.6mm Fixed Lens, Pinhole Lens(f=4.3mm P4)
- Waterproof(IP67): VCL-F4C2DM-WX
- Real-time WDR,2D/3D-DNR,ACE,HLM, Sens-up u DIS, Quick Zoom
- World Smallest size of Ø19
- Option:Cable OSD Key
